H Type Layer Cage
H Type Layer Cage Overview

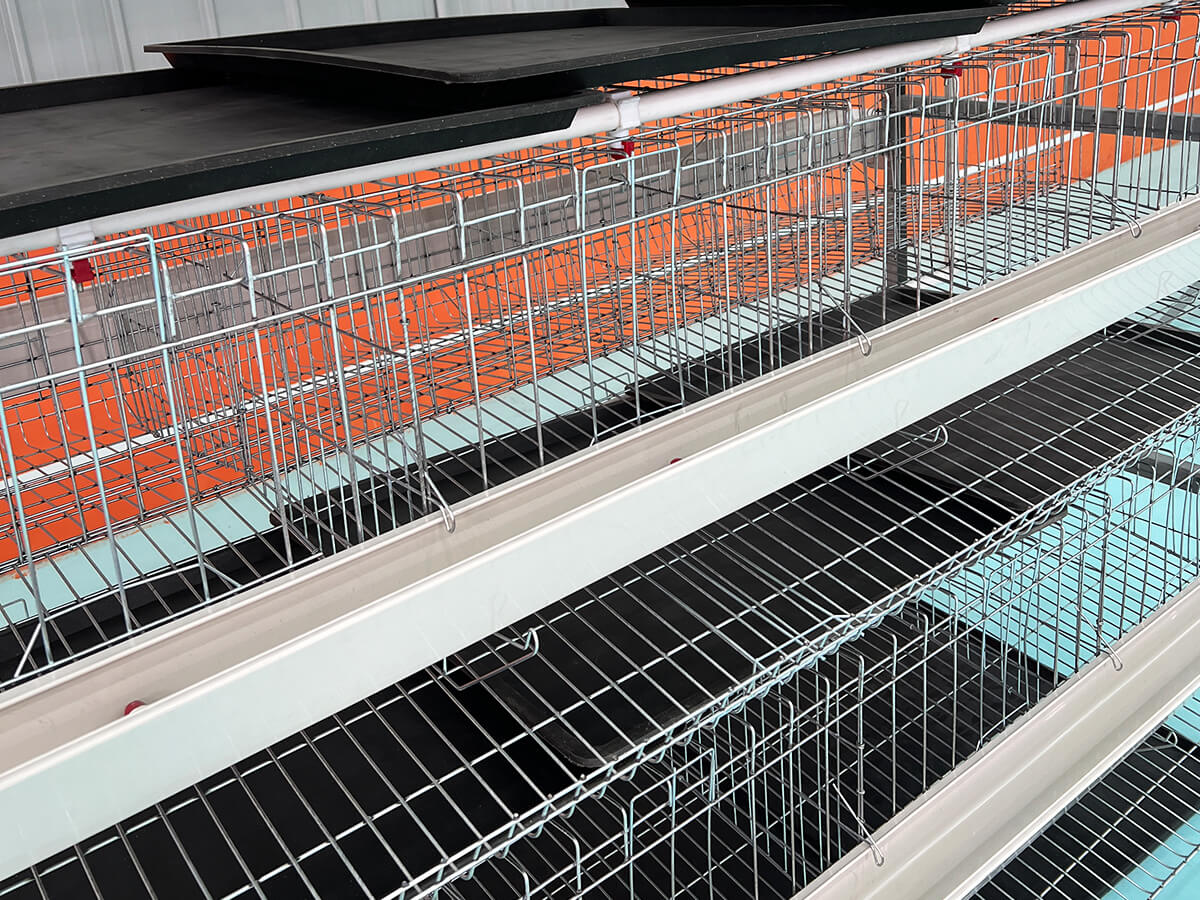

Cage Door and Feed Trough

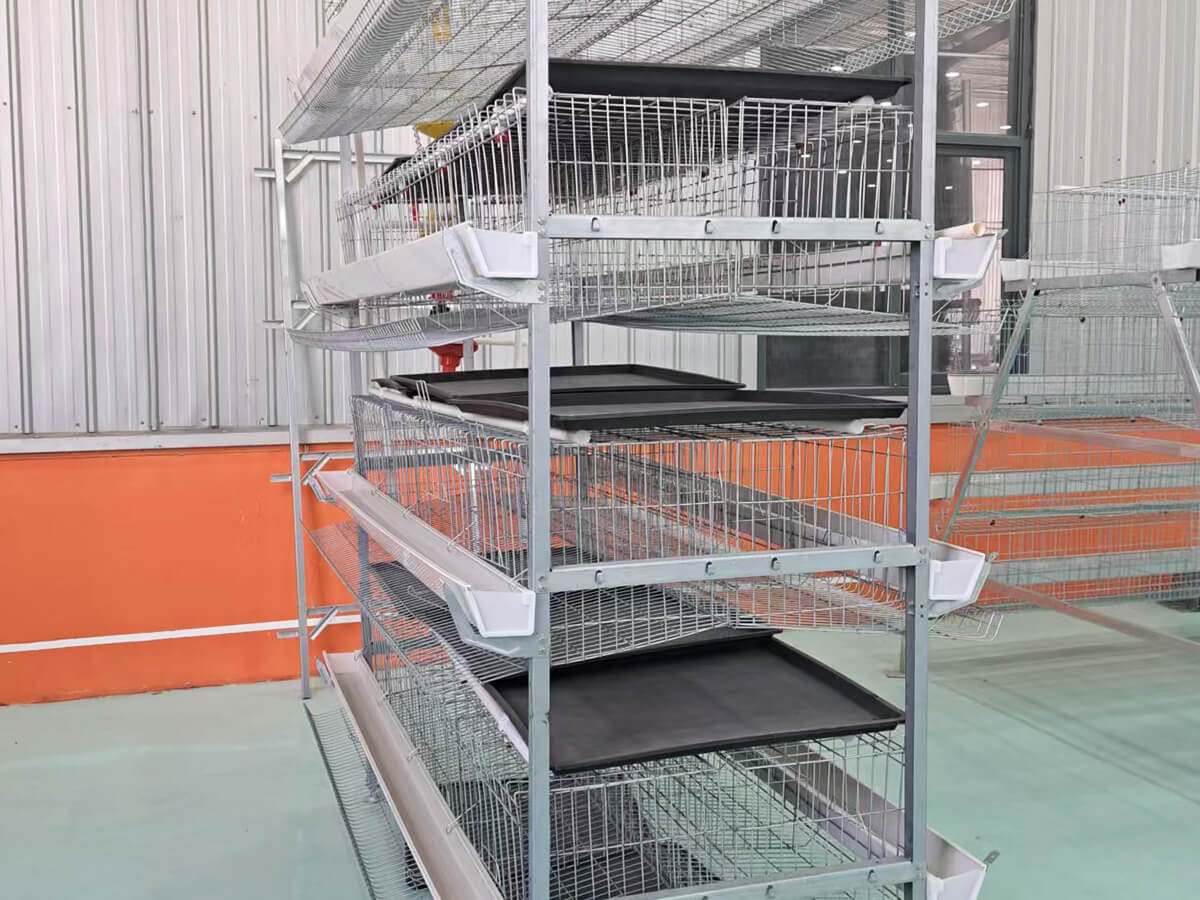

Manure Belt Drive Unit

LAYER CAGE · 3 / 4 / 6 / 8 TIERS

H Type Layer Cage

The standard vertically-stacked layer cage. Tiers sit directly above one another with a belt under each, keeping the house footprint small while manure leaves the house dry.

Why farms choose H-type

  • Density. Eight tiers put 240 birds where an A-type puts 96, on the same slab.
  • Dry manure. Belts carry it out every day or two instead of letting it pile under the cages, which is what drives ammonia and respiratory losses.
  • Labour. Feeding, watering, manure and egg collection can all run on motors, cutting the crew a large house needs.
  • Saleable by-product. Belt manure comes out dry enough to bag and sell to crop farmers rather than pay to remove.
Request H-Type Layout & Quote Compare with A-Type

Specifications

H-Type Technical Parameters

Model Tiers Birds Per Set Dimensions (L×W×H) Galvanization Standard Suits
SX-H3 3 tiers 96 birds 1950 × 2100 × 1750 mm Hot-dip galvanized 275g/m² 3,000 – 8,000
SX-H4 4 tiers 128 birds 1950 × 2100 × 2250 mm Hot-dip galvanized 275g/m² 8,000 – 25,000
SX-H6 6 tiers 180 birds 2400 × 2400 × 3100 mm Hot-dip galvanized 300g/m² 25,000 – 50,000
SX-H8 8 tiers 240 birds 2400 × 2400 × 3900 mm Hot-dip galvanized 300g/m² 50,000 +

Model codes and dimensions are placeholders — replace with your own catalogue figures before going live.

Send your land size. Get an H-type layout back.

No cost, no obligation — an engineer calculates the bird capacity and draws the house blueprint.

Start my quotation
